Complies with ITU G.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4 standard provides GPON network compatibility
Downstream rates up to 2.488Gbps and upstream rates up to 1.244Gbps
Fiber input and gigabit port offer incredibly fast transfer speeds
Compatible with remote management OMCI (ONT Management Control Interface)
Complies with ITU G.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4 standard provides GPON network compatibility
Downstream rates up to 2.488Gbps and upstream rates up to 1.244Gbps
Gigabit port ensures transfer speed
QoS control for traffic prioritization and bandwidth control
Easy and quick installation
Smart energy saving
HARDWARE FEATURES
- Interface
1 RJ45 port 10/100/1000Mbps
1 SC/APC port
- Buttons
1 Power On/Off Button
1 RESET button
- External Power Supply 9VDC/0.6A
- IEEEIEEE 802.3, 802.3u, 802.1Q, 802.1p Standards
- Data Rate
Upstream: 1.244Gbps
Downstream: 2.488Gbps
- Dimensions (LXCXA)4.0*1.5*4.2 in.(102.7 x 37.9 x 106.9mm)
- Distance0~20Km Max
- GPONITU-T Standards G.984.1, G.984.2, G.984.3, G.984.4
- Optical Module Class C+
- Receiver APD-TIA
- DFB Laser Transmitter
- Wavelength
Upstream:1310nm
Downstream: 1490nm
SOFTWARE FEATURES
- QoS
VLAN-based Stream Classification Service
SP/WRR Compatible Scheduling Rules
Upstream Priority Label supports 802.1D User Priority
Rate Limit and Traffic Formation
Tail-Drop Compatible Congestion Control
- VLAN
VLAN tag 802.1Q
VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Authentication by SN and Password
VLAN Auto Detection
- Safety
AES encryption
Packet Filter by VLAN
- Management
Management via Web, OMCI and Telnet,
Fixed Management IP,
Reset to Factory Default by Reset button or Web UI,
Real-time Statistics, Optical Diagnostics
- Advanced Features
Upstream and Downstream FEC
Dynamic Bandwidth Allocation (DBA) compatible with NSR/SR
Up to 16 T-CONTs and 256 GEM Ports
Optical energy detection, Dying Gasp
Terminal Silent mechanism
802.3az EEE Energy Saving
- IGMP
IGMP v2/v3
IGMP Snooping/Proxy
OTHERS
- Certification
CE, FCC, RoHS
- Package Content
TX-6610
RJ45 Ethernet cable
Quick Installation Guide
Network Adapter
- System requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux.
- Environment
Operating Temperature: 0?~40? (32'~104');
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

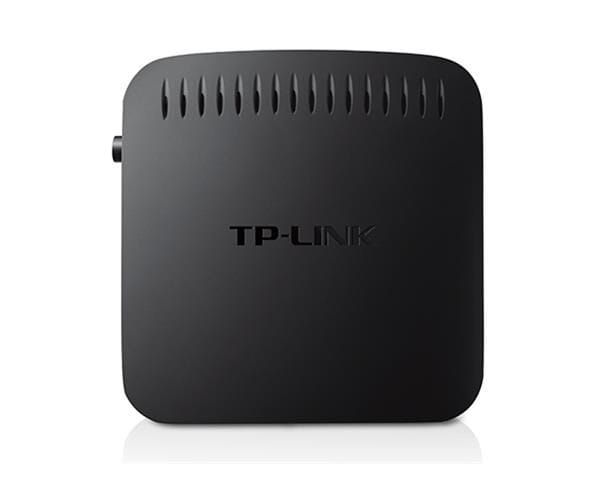

Terminal tp-link gpon un 1 gigabit port - tx-6610
SKU: A0066279S
R$196.00Price
