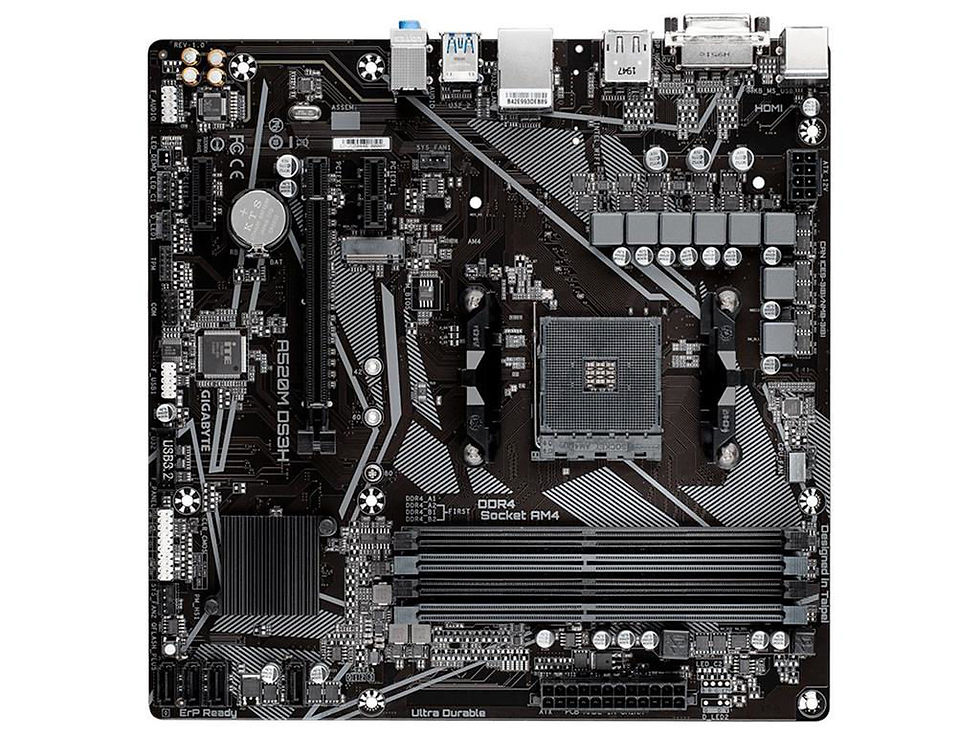

Model: A520M DS3H
Specifications:
CPU:
- AMD Socket AM4, support for: 3rd generation AMD Ryzen ™ processors / 3rd generation AMD Ryzen ™ processors with Radeon ™ graphics processors
- See "CPU Support List" for more information
Chipset:
- AMD A520
Memory:
- 4 x DDR4 DIMM Sockets with support for up to 128GB (32GB single DIMM capacity) of system memory
- AMD Ryzen ™ 3rd Generation Processors: Support for DDR4 Memory Modules 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz
- AMD Ryzen ™ 3rd generation with Radeon ™ graphics processors: Support for DDR4 4733 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/ 2667 / 2400/2133 MHz memory modules
- Dual channel memory architecture
- Support for DIMM 1Rx8 / 2Rx8 ECC unbuffered memory modules
- Support for non-ECC 1Rx8 / 2Rx8 / 1Rx16 non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* See "Memory Support List" for more information
Onboard graphics:
- Integrated on 3rd generation AMD Ryzen ™ with Radeon ™ graphics processors:
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @ 60 Hz
* DVI-D port does not support D-Sub connection by adapter
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880 @ 60 Hz
* Support for DisplayPort version 1.4, HDCP 2.3 and HDR
1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
* Support for HDMI 2.1, HDCP 2.3 and HDR version
- Support for up to 3 monitors at the same time
- Maximum shared memory of 16 GB
Audio:
- Codec Realtek ® ALC887
- High definition audio
- 2/4 / 5.1 / 7.1 channels
* To configure 7.1 channel audio, you need to open the audio software and select Advanced Device Settings > Playback Device to change the default setting first. Visit the GIGABYTE website for details on audio software setup
LAN:
- Realtek ® GbE LAN Chip (1000 Mbit / 100 Mbit)
Expansion slots:
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- Chipset:
- 2 x PCI Express x1 Slots, with support for PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Storage Interface:
- CPU:
- 1 x M.2 Connector (socket 3, M switch, type 2242/2260/2280 SATA and support for SSD PCIe 3.0 x4 / x2)
- Chipset:
- 4 x 6 Gb/s SATA Connectors
- Support for RAID 0, RAID 1 and RAID 10
USB:
- CPU:
- 4 x USB 3.2 Gen 1 ports on rear panel
- Chipset:
- 2 x USB 3.2 Gen 1 ports available via internal USB connector
- 4 x USB 2.0 / 1.1 ports (2 ports on rear panel, 2 ports available via internal USB connector)
Internal I/O Connectors:
- 1 x 24-pin ATX Main Power Connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU Fan Header
- 2 x System Fan Connectors
- 1 x Addressable LED Strip Header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 Connector
- 4 x 6 Gb/s SATA Connectors
- 1 x Front Panel Header
- 1 x Front Panel Audio Connector
- 1 x USB 3.2 Gen 1 Connector
- 1 x USB 2.0 / 1.1 Connector
- 1 x Header Trusted Platform Module (TPM) (2x6 pins, for GC-TPM2.0_S module only)
- 1 x Serial Port Header
- 1 x CMOS clear jumper
- 1 x Q-Flash Plus Button
Back Panel Connectors:
- 1 x PS / 2 Keyboard / Mouse Port
- 1 x DVI-D Port
- 1 x DisplayPort
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 Ports
- 2 x USB 2.0 / 1.1 ports
- 1 x RJ-45 port
- 3 x Audio Inputs
I/O Controller:
- iTE ® I/O controller chip
H/W Monitoring:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan failure alert
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install
BIOS:
- 1 x 128 Mbit flash
- Use of licensed UEFI BIOS AMI
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
- Support for APP Center
* Apps available on APP Center may vary by motherboard model. Functions supported by each application may also vary depending on motherboard specifications
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for installing Xpress
Operational system:
- Support for 64-bit Windows 10
Form factor:
- Micro ATX form factor; 24.4 cm x 24.4 cm
Observation:
- Due to the different Linux support conditions provided by the chipset vendors, download the Linux driver from the chipset vendors website or from third parties
- Most hardware / software vendors may no longer offer drivers to support Win9X / ME / 2000 / XP. If drivers are available from vendors, we will update them on the GIGABYTE website
Package content:
- 1 x Gigabyte Motherboard - A520M DS3H
